产品名称:
12V3A 电源适配器 充电器
输入电压:
100V-240V 50/60HZ
输出电压:
12v 3000ma 12v3300ma 12v4000ma
高压测试:
3000V AC
老化负载:
输入220V 满负载老化2小时
尺 寸:
尺寸:L63.3x W63.3x H31.55mm
颜 色:
黑色 白色 可定制
认 证:
CCC CE GS UL ETL FCC SAA KC PSE

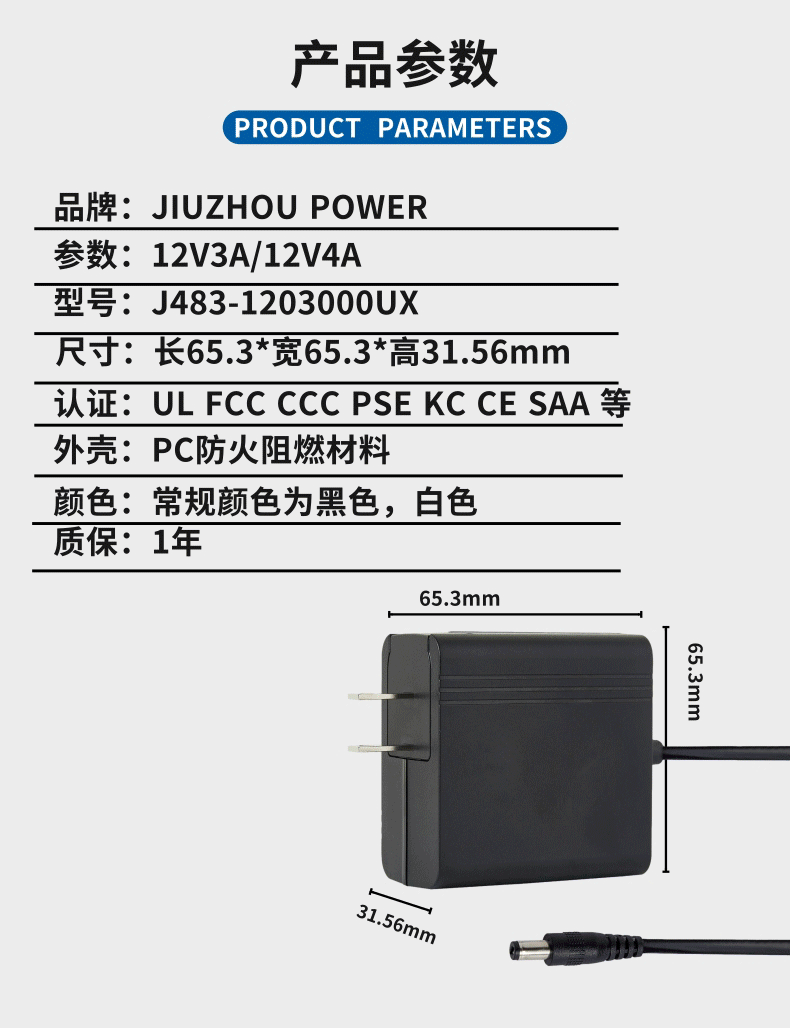

产品尺寸图:
输入特性/INPUT CHARACTERISTICS:
2.1输入电压/Input Voltage:
额定电压/Rated Voltage: 100-240 Vac
调整范围/Variation Range: 90-264 Vac
2.2输入频率/Input Frequency:
额定频率/ Rated Frequency: 50-60 Hz.
调整频率/Variation Frequency: 47-63 Hz
2.3输入电流/Input Current:
当输入交流电压为额定值的下限电压负载满载时,最大输入交流电流 0.35 A.
0.35 Amps max At any input voltage and rated, DC output rated load.
2.4浪涌电流/Inrush Current:
冲击电流峰值在额定电压输入,冷启动(25℃)时,不大于 30A ;且在任何负载和输入条件下,不导致永久性损坏或危险.
Impact current peak in the rated voltage input, cold start (25 ℃), not more than 30 A; And in any load and input conditions, don't cause permanent damage or dangerous.
2.5 AC漏电流/Ac Leakage Current:
当输入电压240Vac时,最大漏电流为0.25mA./ 0.25mA Max.At240Vac input.
2.6 Stand-by power consumption ≤ 0.1 Watts.
待机功耗≤ 0.1 W.
